FLARE NUT WRENCH (MM/SAE)

W24

FLARE NUT WRENCH (MM/SAE)

Available Items and Specification for Inquiry: Select item(s) that you want to inquire:

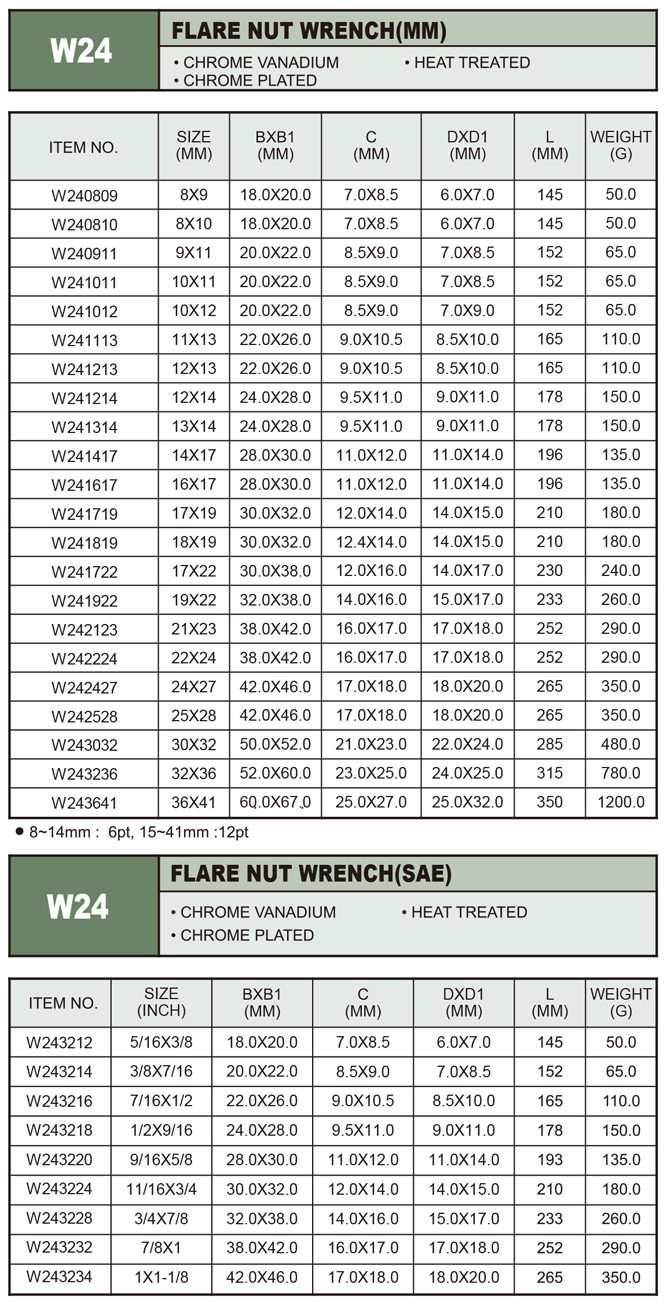

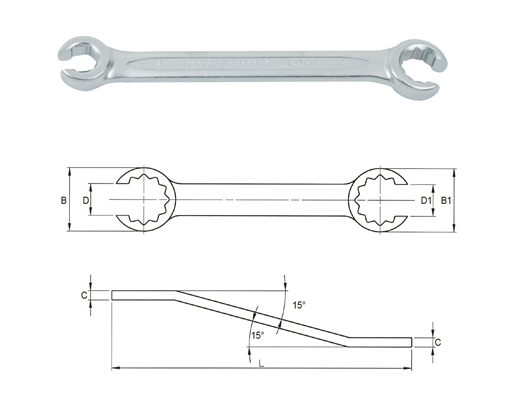

Item No. SIZE (MM/SAE) BXB1 (MM) C (MM) DXD1 (MM) L (MM) WEIGHT (G) Quantity
W240809 8X9 18.0X20.0 7.0X8.5 6.0X7.0 145 50.0
W240810 8X10 18.0X20.0 7.0X8.5 6.0X7.0 145 50.0
W240911 9X11 20.0X22.0 8.5X9.0 7.0X8.5 152 65.0
W241011 10X11 20.0X22.0 8.5X9.0 7.0X8.5 152 65.0
W241012 10X12 20.0X22.0 8.5X9.0 7.0X9.0 152 65.0
W241113 11X13 22.0X26.0 9.0X10.5 8.5X10.0 165 110.0
W241213 12X13 22.0X26.0 9.0X10.5 8.5X10.0 165 110.0
W241214 12X14 24.0X28.0 9.5X11.0 9.0X11.0 178 150.0
W241314 13X14 24.0X28.0 9.5X11.0 9.0X11.0 178 150.0
W241417 14X17 28.0X30.0 11.0X12.0 11.0X14.0 196 135.0
W241617 16X17 28.0X30.0 11.0X12.0 11.0X14.0 196 135.0
W241719 17X19 30.0X32.0 12.0X14.0 14.0X15.0 210 180.0
W241722 17X22 30.0X38.0 12.0X16.0 14.0X17.0 230 240.0
W241819 18X19 30.0X32.0 12.4X14.0 14.0X15.0 210 180.0
W241922 19X22 32.0X38.0 14.0X16.0 15.0X17.0 233 260.0
W242123 21X23 38.0X42.0 16.0X17.0 17.0X18.0 252 290.0
W242224 22X24 38.0X42.0 16.0X17.0 17.0X18.0 252 290.0
W242427 24X27 42.0X46.0 17.0X18.0 18.0X20.0 265 350.0
W242528 25X28 42.0X46.0 17.0X18.0 18.0X20.0 265 350.0
W243032 30X32 50.0X52.0 21.0X23.0 22.0X24.0 285 480.0
W243236 32X36 52.0X60.0 23.0X25.0 24.0X25.0 315 780.0
W243641 36X41 60.0X67.0 25.0X27.0 25.0X32.0 350 1200.0
W243212 5/16X3/8 18.0X20.0 7.0X8.5 6.0X7.0 145 50.0
W243214 3/8X7/16 20.0X22.0 8.5X9.0 7.0X8.5 152 65.0
W243216 7/16X1/2 22.0X26.0 9.0X10.5 8.5X10.0 165 110.0
W243218 1/2X9/16 24.0X28.0 9.5X11.0 9.0X11.0 178 150.0
W243220 9/16X5/8 28.0X30.0 11.0X12.0 11.0X14.0 193 135.0
W243224 11/16X3/4 30.0X32.0 12.0X14.0 14.0X15.0 210 180.0
W243228 3/4X7/8 32.0X38.0 14.0X16.0 15.0X17.0 233 260.0
W243232 7/8X1 38.0X42.0 16.0X17.0 17.0X18.0 252 290.0
W243234 1X1-1/8 42.0X46.0 17.0X18.0 18.0X20.0 265 350.0
